Natural lighting archivos - Huurre https://www.huurreiberica.com/en/product-category/natural-lighting/ Paneles aislantes para edificios eficientes y sostenibles | Fabricamos paneles para fachadas, paredes interiores, Tue, 16 Jun 2026 11:17:54 +0000 en-US hourly 1 https://wordpress.org/?v=7.1.3 https://www.huurreiberica.com/wp-content/uploads/2025/01/cropped-favicon-huurre-1-32x32.png Natural lighting archivos - Huurre https://www.huurreiberica.com/en/product-category/natural-lighting/ 32 32 XT LUX https://www.huurreiberica.com/en/product/xt-lux/ Mon, 17 Feb 2025 14:58:37 +0000 https://www.huurreiberica.com/?post_type=producto&p=15996 Description and applications Modular skylight made of cellular polycarbonate, with excellent protection against UV light, very long-lasting and elevated thermal and mechanical properties. They are supplied in made-to-measure lengths on order. Ridge-to-channel natural lighting of insulated roofs executed using HI-XT panels for industrial, residential, commercial and sports facilities building. Technical specifications

La entrada XT LUX se publicó primero en Huurre.

]]>

Description and applications

Modular skylight made of cellular polycarbonate, with excellent protection against UV light, very long-lasting and elevated thermal and mechanical properties. They are supplied in made-to-measure lengths on order. Ridge-to-channel natural lighting of insulated roofs executed using HI-XT panels for industrial, residential, commercial and sports facilities building.

Downloads

Datasheet – XT LUX

Download

Panel safety data sheet

Download

Assembly Sheet – XT LUX

Download

Declaration of Performance – XT LUX 30 mm

Download

Declaration of Performance – XT LUX 40 mm

Download

Technical specifications

Characteristics

Color Opal white

Thickness 30 mm |40 mm

Useful plate width 1,000 ± 5 mm

Panel length made to measure

Light transmission 39 %

Thermal insulation 1.05 W/m2K

Acoustic insulation 21 dB

Linear expansion coefficient 0,065 mm/mºC

Reaction to fire Euroclass B-s1,d0 (UNE-EN 13501-1)

UV protection Outer face co-extrusion

Range of service temperatures -30º to + 120ºC

Maximum distance between supports 2,000 mm

Solar Energy Transmission (G value) 45% (30 mm) | 42 % (40 mm)

La entrada XT LUX se publicó primero en Huurre.

]]> TZ-CLIC https://www.huurreiberica.com/en/product/tz-clic-skylight/ Sat, 26 Oct 2024 08:44:21 +0000 https://unrivalled-manx-5b8ed1.instawp.xyz/producto/lucernario-tz-clic/ Product Skylight plate in cellular polycarbonate withconcealed fixing, UV protection and EuroclassB-s1,d0 fire classification.With a thickness of 30 mm and a useful width of 1,150mm, it is compatible with any thickness of HI-CT paneland, as it has the same useful width as the panel, itfollows its modulation and is compatible with all itsaccessories. Applications Natural […]

La entrada TZ-CLIC se publicó primero en Huurre.

]]>

Product

Skylight plate in cellular polycarbonate with
concealed fixing, UV protection and Euroclass
B-s1,d0 fire classification.
With a thickness of 30 mm and a useful width of 1,150
mm, it is compatible with any thickness of HI-CT panel
and, as it has the same useful width as the panel, it
follows its modulation and is compatible with all its
accessories.

Downloads

Data sheet – TZ Clic

Download

Assembly Sheet – TZ CLIC

Download

Declaration of Performance – TZ-Clic

Download

Applications

Natural lighting in sandwich panel enclosures for industrial and commercial buildings and sports facilities.

Technical characteristics

The TZ-CLIC skylight has a concealed fixing system using a clip fixed to the fixing screw of the adjacent panel, which prevents perforating the polycarbonate. A joint-covering profile conceals the assembly, guaranteeing a perfect finish and the tightness of the system.

Intermediate staples can be incorporated between supports to improve the performance of the system under high loads, both suction and pressure.

In roofs with HI-CT panels thicker than 30 mm, shims must be installed to support the skylight on the purlins.

Características

Espesor 30 mm

Ancho útil 1.150 mm

Longitud máxima A medida

Estructura 6 paredes

Color estándar Light opal

Transmisión de la luz 39%

Factor solar 0,46

Protección UV Cara exterior

Dilatación lineal 0,065 mm/m ºC

Aislamiento térmico 1,25 W/m2 ºC

Reacción al fuego B-s1,d0

La entrada TZ-CLIC se publicó primero en Huurre.

]]> Complet https://www.huurreiberica.com/en/product/complet-skylight/ Wed, 16 Oct 2024 07:52:20 +0000 https://unrivalled-manx-5b8ed1.instawp.xyz/producto/lucernario-tz-complet/ Product Modular cellular polycarbonate skylight, with high protection against UV rays, high durability, high thermal insulation and easy and simple assembly. Designed to be modulated with the HI-CT panel, it offers a choice of two practical widths: 573 mm or 1,150 mm. Applications Natural lighting on HI-CT panel insulating roofs for industrial, residential and commercial […]

La entrada Complet se publicó primero en Huurre.

]]>

Product

Modular cellular polycarbonate skylight, with high protection against UV rays, high durability, high thermal insulation and easy and simple assembly.


Designed to be modulated with the HI-CT panel, it offers a choice of two practical widths: 573 mm or 1,150 mm.

Downloads

Technical sheet – Complete

Download

Declaration of Performance – Complet

Download

Applications

Natural lighting on HI-CT panel insulating roofs for industrial, residential and commercial buildings and sports facilities.

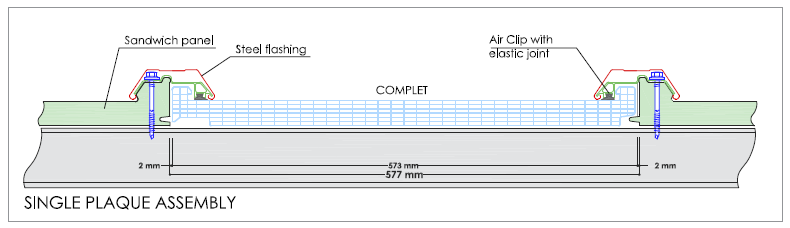

Components and mounting options

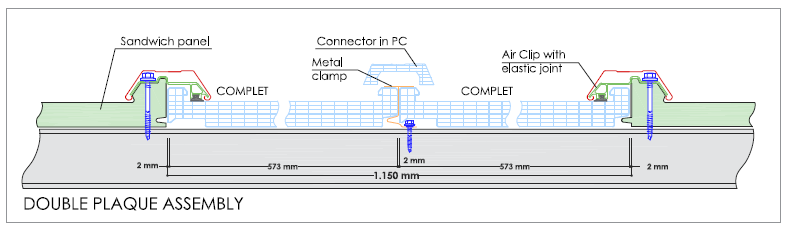

The kit includes the COMPLET 7-wall polycarbonate skylights, the aluminium clips and the required lower joint profiles. In the case of a double-plaque installation, the aluminium clamps and polycarbonate cover plates are also provided.

Características

La entrada Complet se publicó primero en Huurre.

]]>
