XT LUX
Description and applications

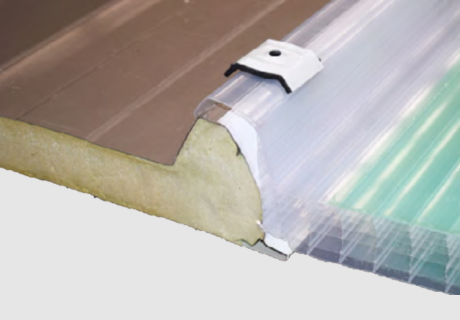

Modular skylight made of cellular polycarbonate, with excellent protection against UV light, very long-lasting and elevated thermal and mechanical properties. They are supplied in made-to-measure lengths on order. Ridge-to-channel natural lighting of insulated roofs executed using HI-XT panels for industrial, residential, commercial and sports facilities building.
Downloads
Datasheet – XT LUX
Technical specifications
Characteristics
Color Opal white

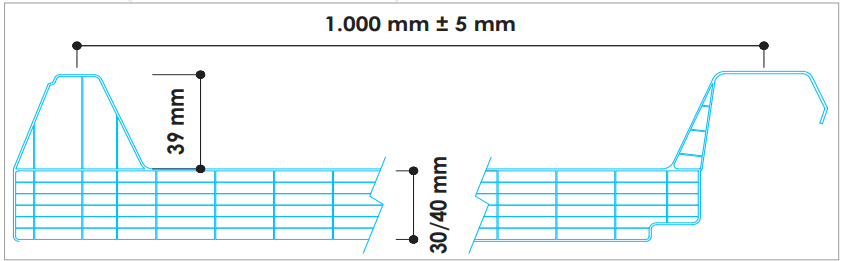

Thickness 30 mm |40 mm
Useful plate width 1,000 ± 5 mm
Panel length made to measure
Light transmission 39 %
Thermal insulation 1.05 W/m2K
Acoustic insulation 21 dB
Linear expansion coefficient 0,065 mm/mºC
Reaction to fire Euroclass B-s1,d0 (UNE-EN 13501-1)
UV protection Outer face co-extrusion
Range of service temperatures -30º to + 120ºC
Maximum distance between supports 2,000 mm
Solar Energy Transmission (G value) 45% (30 mm) | 42 % (40 mm)
