HI-F 40
Description and applications
Sandwich panel with metal faces and rigid insulating core, designed for renovation and cladding applications. Good fire performance, certified by FM Approvals (HI-PIRM F40 panel). Compliant with FM 4880 standard for interior use. The HI-F40 panel range is available with two insulating cores: PIR (HI-PIR F40) and PIRM (HI-PIRM F40). Available in various steel thicknesses, coatings and different exterior profile finishes.
Downloads
Data sheet – HI-F40
BIM – HI-F40 – DJ
BIM – HI-F40 – DS
N-mark certificate – HI-PIRM-F40
N-mark certificate – HI-PIR-F40
DWG Drawing- HI-F40 (DJ joint)
DWG-HI-F40-DS Plan
PDF Plan – HI-PIR(M) F40 (DJ)
PDF Plan – HI-PIR(M) F40(DS)
Fire behavior
Fire behavior EUROCLASE B-s1,d0
Reaction to fire according to FM Approvals standards (HI-PIRM F panel only): FM 4880 Class 1* Fire resistance of building panels or interior finishing materials. The FM 4880 test program ensures good fire performance in dividing walls and interior ceilings with the HI-PIRM F40 panel, of any height, with the highest fire protection requirements.
Technical characteristics
Useful width: 1,150 mm (1,120 mm, check availability)
Manufacturing length: 2.0 to 13.5m | 13.5 to 18.0 m (special transport)
Type of gasket: DJ | DS
Declared thermal conductivity: 0.022 W/mK (considering aged core)
Nominal thickness: 40 (mm)
Tightness and types of seals

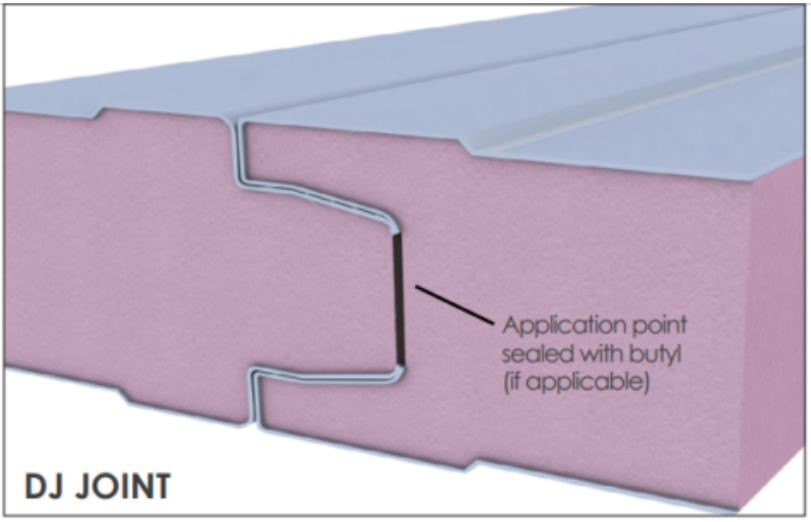

The HI-F40 panel is available with two types of joints, both with tongue and groove and a flexible closed-cell polyethylene joint.
Both the DJ and DS gaskets are designed to ensure the best possible seal with quick and easy assembly, with the only difference being that the DS gasket is designed to accommodate an additional sealing bead on the outside, which can be applied once the panels have been assembled.
Both types of gasket allow for a butyl seal to be placed on the inside, to be applied during the assembly phase.
